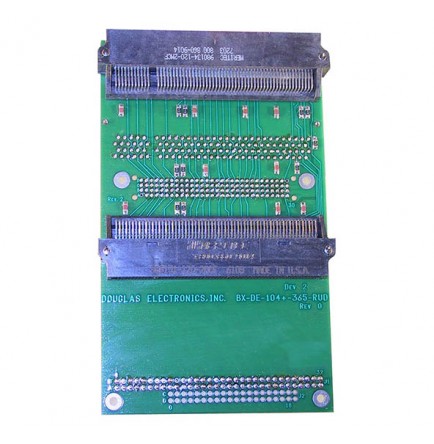

The BX-DE-104+-365-RUD board provides up to three PCI boards to plug into a PC/104 (or PCI-104) buss. The board is can have any combination of the three PCI connectors installed. See the drawing for further clarification. The board normally comes with ISA pins installed. To not have those pins (as for a PCI-104) put ‘NO ISA’ following part number. The 0, 1 & 2 are the equivalent slot numbers in the PCI buss.
Options:
BX-DE-104+-365-RUD (All three PCI connectors)
BX-DE-104+-365-RUD-0 (Flat toward back-under board)
BX-DE-104+-365-RUD-1 (Flat toward back-above board)
BX-DE-104+-365-RUD-2 (Flat toward the front of the board over the ISA pins)
BX-DE-104+-365-RUD-01 (combination of above)
BX-DE-104+-365-RUD-02 (combination of above)
BX-DE-104+-365-RUD-12 (combination of above)
BX-DE-104+-365-RUD-012 (combination of above)
