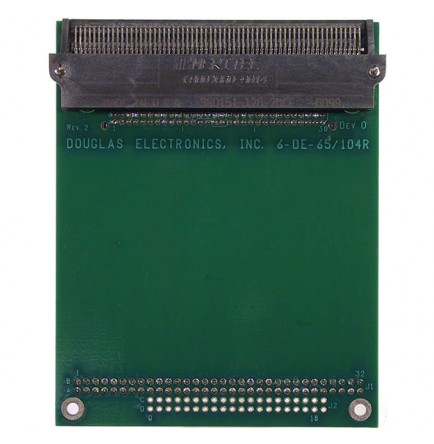

The 6-DE-65/104RL & RH boards support a single PCI board from a PC/104Plus stack. They place the PCI board in a parallel plane to the PC/104 boards.
The RL and RH models are identical except for the distance between the slot and the board. The RH board provides 0.625” clearance between the board and the PCI board. Where the RL board provides 0.200” clearance.
The RL and RH models boards make a compact package by keeping the PCI card low to the PC/104 stack. The RL and RH versions must be the top board on the stack.
The PCI slots are normally configured as slot 0; however, other options are available.
Options:
6-DE-65/104RL (Low version)
6-DE-65/104RH (High version)
