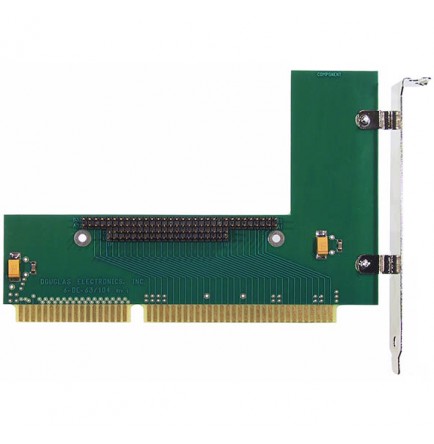

The 6-DE-63/104 board is used to connect a PC/104 board to an ISA bus. The board allows access to both sides of the PC/104 board. It allows PC/104 modules to be developed and tested on a PC host. This four-layer board connects all ISA signals and the power supply lines of the host computer to the standard PC/104 bus connectors.
The 6-DE-63/104 can be used with a BX-DE-63-2 to allow ISA boards to be connected to a PC/104 stack (substitute the 6-DE-63/104-LB to connect ISA boards to a Little Board).
PC/104 bus pins project from the component side of the 6-DE-63/104. When a PC/104 board is attached, the component side of the PC/104 board faces the component side of the 6-DE-63/104.
All holes are plated-through, and the ISA edge connector fingers are gold plated. The circuit board measures 6.200" x 4.200".
Note: A similar board 6A-DE-63/104 is also available for use with finished applications. It connects a PC/104 stack to an ISA bus and allows the ISA box to be closed. It is more commonly used where easy access to the PC/104 board is not required.
Options: (If not specified, we will ship the S option)
*6-DE-63/104-S (female sockets only)
6-DE-63/104-P (male pins only)
6-DE-63/104-T (pass-through connectors)
