Type: Mixed DIPs

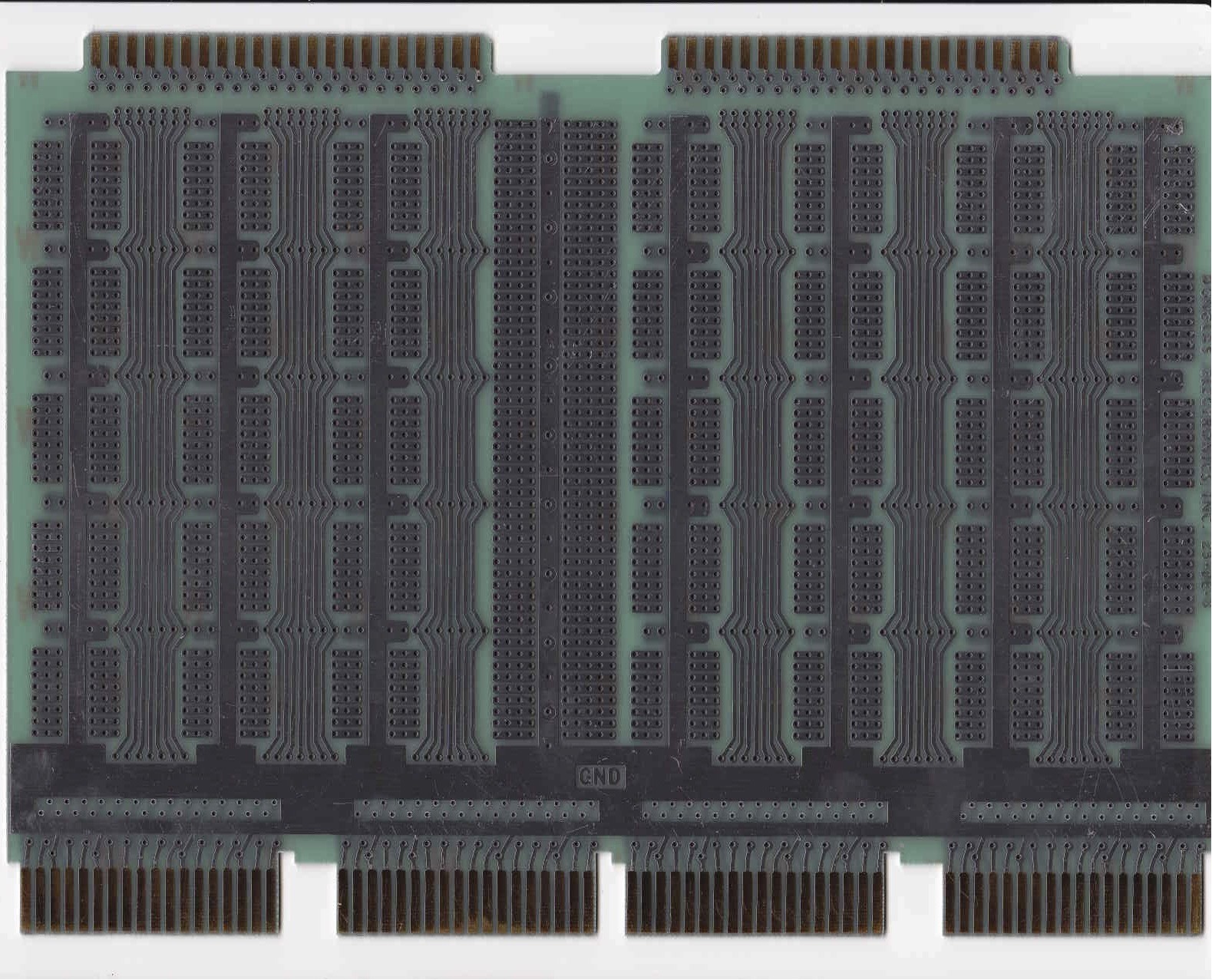

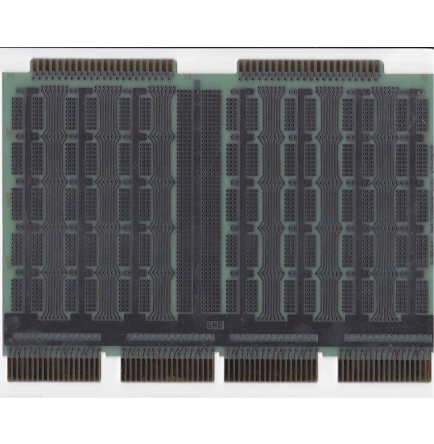

The 25-DE-8 is a quad-width, dual-height DEC-compatible board with 35 DIP positions plus 54 pin row of DIP pads, plated-through holes, and 44-pin I/O access. Has 144 contacts (72/side) on .125" centers on 4 tabs.
Height 8.43" Width 10.436"
