Type: Large DIPs

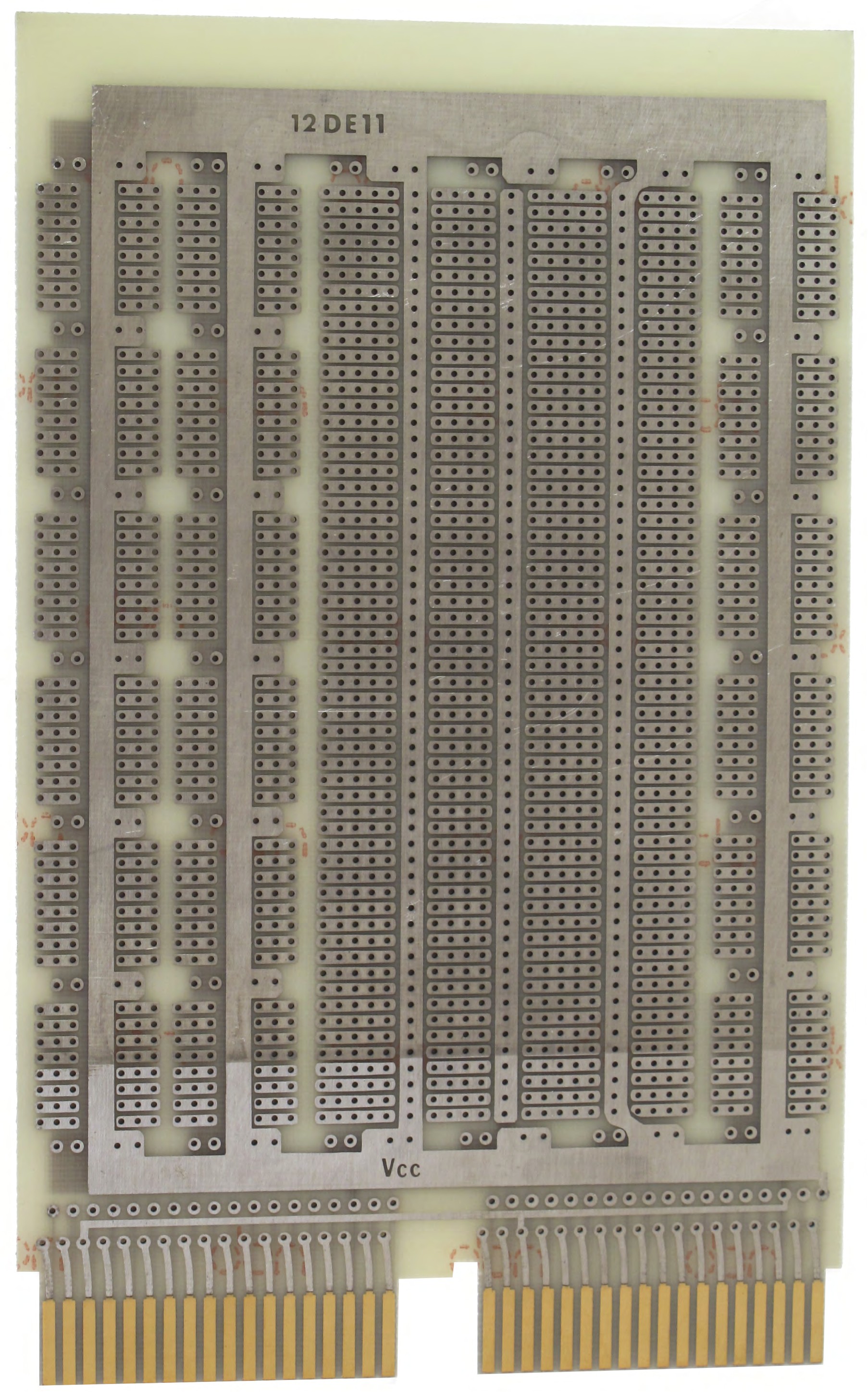

The 12-DE-11 dual-width, dual-height DEC compatible board features eighteen 16-pin DIP positions plus 2 dual rows of 116 pads each for large packages. VCC and GND busses on opposite sides of board, and plated-through holes. Has 72 contacts (36/side) on .125" centers on 2 tabs.
Height 8.43" Width 5.2"
