IMPORTANT PRODUCT NOTE: The 11-DE-3-GP board is old stock, which is now SOLD OUT. In its place, we are shipping an alternative board that is almost identical to 11-DE-3-GP.
It is the same size, same pattern on both sides.
Gold plated fingers etc.
The ONLY differences are:
1. Board width is 4.375”, whereas 11-DE-3-GP is 4.5”.
2. There are four pins from the edge connector that are connected to circuitry on the board.
The board is labeled “LMSC5581542” and is designated Part Number: 11-DE-1-GP-2
IF THIS ALTERNATIVE WILL NOT WORK FOR YOU, DO NOT ORDER 11-DE-3-GP.
Type: 16-pin DIPs

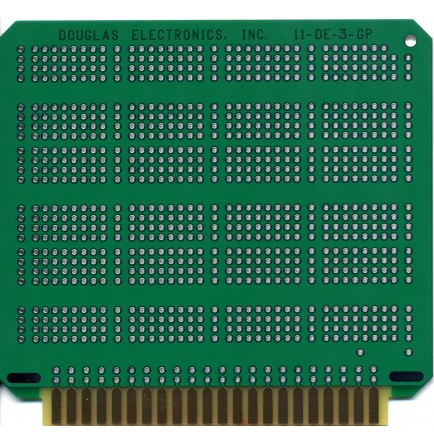

The 11-DE-3-GP is a 12-position dual in-line general purpose bread board with circuits on one side, and gold-plated fingers on both sides. Holes are plated-through. There is a ground plane on back side of the board. Has 44 contacts (22/side) on .156" centers.
Height: 4.2" Width: 4.5"
