*IMPORTANT PRODUCT NOTE*: The 11-DE-1-GP is old stock, which is now SOLD OUT. In its place, we are shipping an alternative board that is almost identical to 11-DE-1-GP.
It is the same size, same pattern on both sides.
Gold plated fingers etc.
The ONLY differences are:
1. Pin 11 is connected to the Ground Plane.

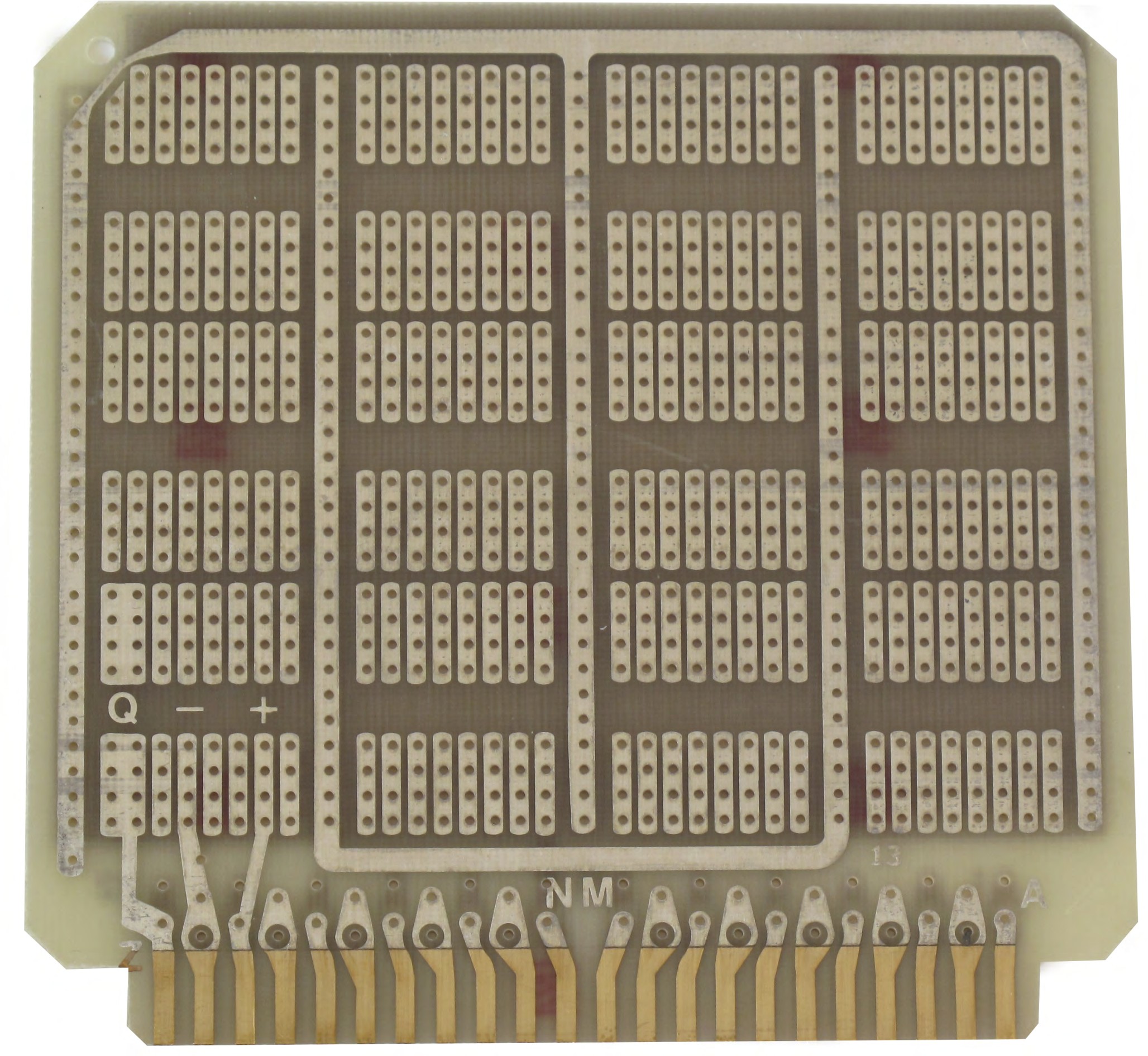

2. Pins X, Y & Z are connected to land patterns.
3. Two traces (at location Q) are connected together.

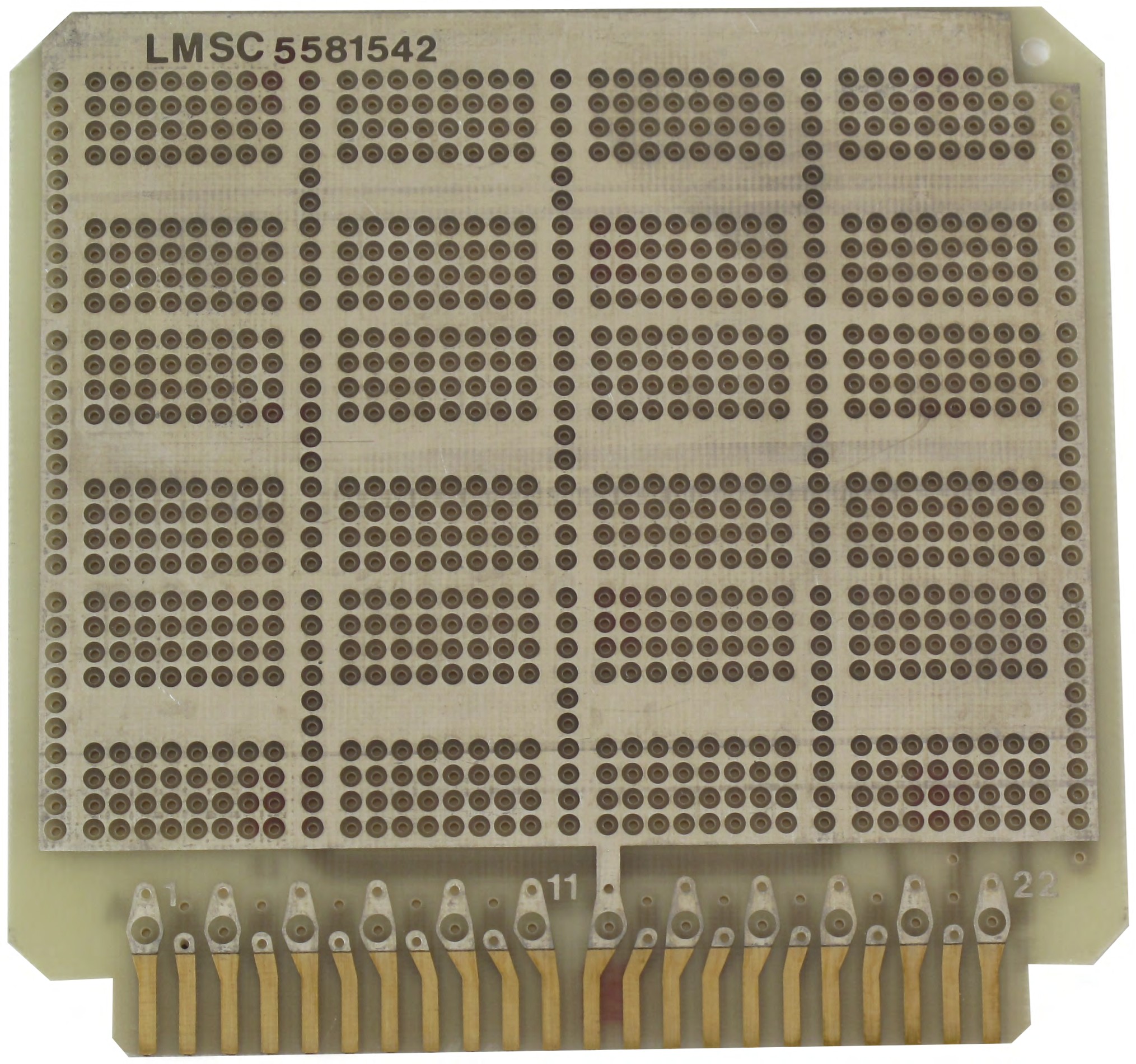

The board is labeled: LMSC5581542
IF THIS ALTERNATIVE WILL NOT WORK FOR YOU, DO NOT ORDER 11-DE-1-GP.
Type: 16-pin DIPs
The 11-DE-1-GP is a general purpose 12-position dual in-line bread board with circuits on one side, and gold-plated fingers on both sides. Holes are not plated-through. There is a ground plane on back side of the board. Has 44 contacts (22/side) on .156" centers.
Height: 4.2" Width: 4.375"
